AGS-40Z Rebar Thread Rolling Machine
It is an auto rebar thread rolling machine by air pressure.
Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
Technical Parameter:
| Model | AGS-40Z | ||
| Threading Roller Diameter | 78.2 mm | 70 mm | 59 mm |
| Thread Pitch | 2.5 mm | 3 mm | 3 mm |
| Rebar Diameter(mm) | Φ16-Φ22 | Φ25-Φ32 | Φ36-Φ40 |
| Main Motor Power | 5.5 kw | ||
| Working Current | 380V 50HZ | ||
| Spindle Speed | 62-75 r/min | ||
| Max. Thread Length | Right thread: 100 mm | ||
| Net Weight | 400 kg | ||
Photos of AGS-40Z:
Packing:

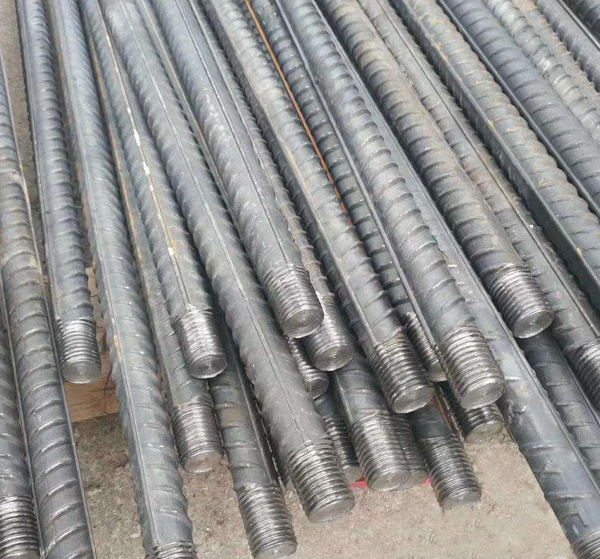

The machine is used to peel ribs and roll threads on rebar end.
1. Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
2. Easy to operate. Automatic opening-closing mechanism for rib peeling device, need only 30 seconds to finish a threaded end.
3. Peel ribs and roll threads by the same machine, so could save labor and improve productivity.
4. Widely used. Be able to process rebar diameter 16-40mm
5. Environment-friendly, safe, no environment and weather restrictions.
6. Economic, low investment for the equipment
Plywood Case
Product Name: AGS-40Z Rebar Thread Rolling Machine
